AR10 Foundation Handguards
AERO M5 UPPERS CAN BE AN ISSUE WITH THESE RAILS. AERO DOES NOT CUT THEIR RAILS TO MIL STD 1913 AND INTERFERENCE CAN BE AN ISSUE WITH OUR ANTI ROTATION TABS.

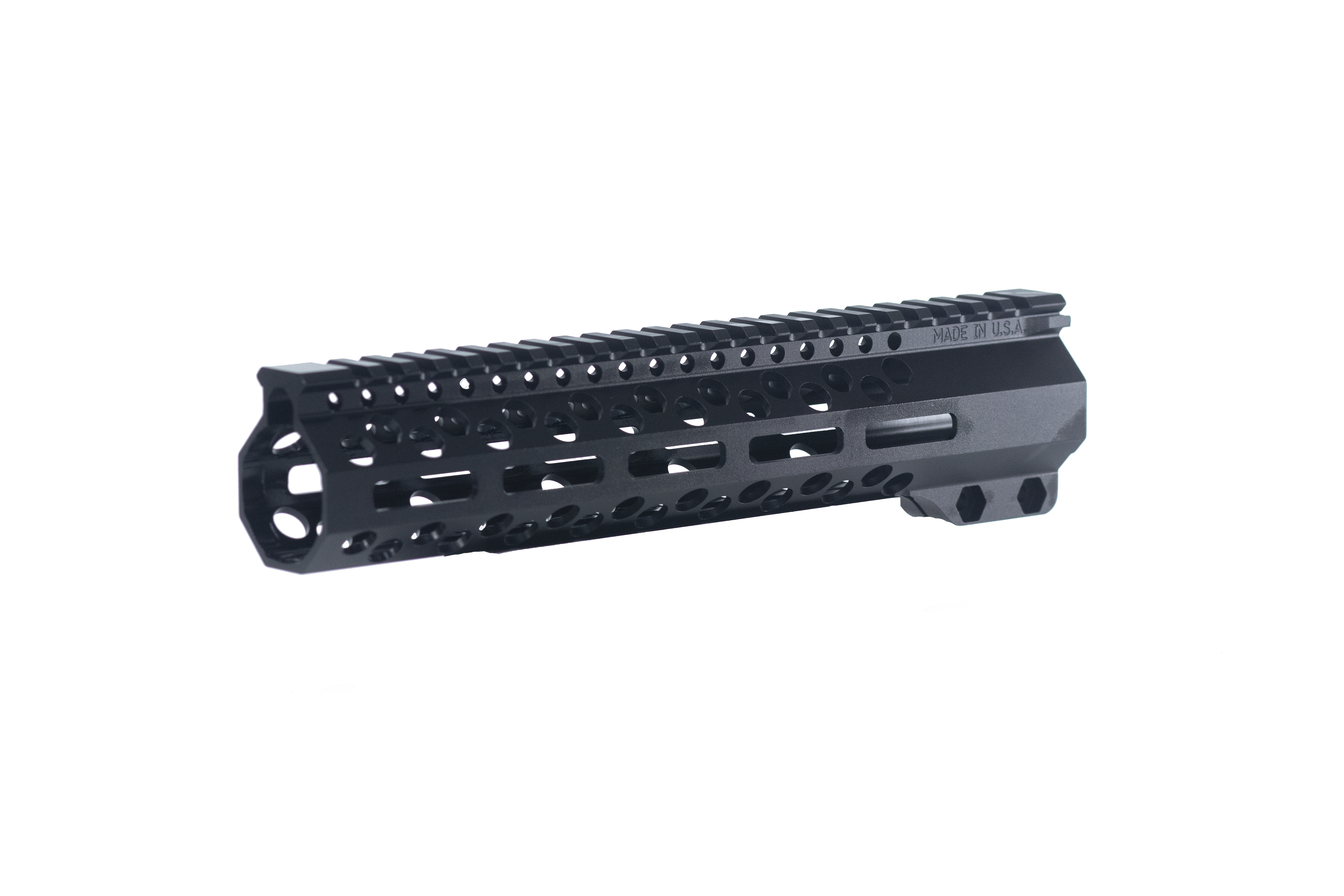

Our AR-chitect AR10 FOUNDATION SERIES handguards are designed to be slim and light.
An overall width of 1.625 inches and a weight of only 12 ozs. for the 15-inch model provide
A 1.43 inch I.D. will accommodate most low-profile gas blocks. (we have seen some interference
with some clamp-on style low profile gas blocks)
MLOK slots at the 3,6 and 9 positions are manufactured to MAGPUL standards to ensure proper
fitment with any MAGPUL certified accessories.
Anti-rotation ears that are integral to the MIL-SPEC 1913 picatinny rail ensure a clean fit with either
forged or billet upper receivers.

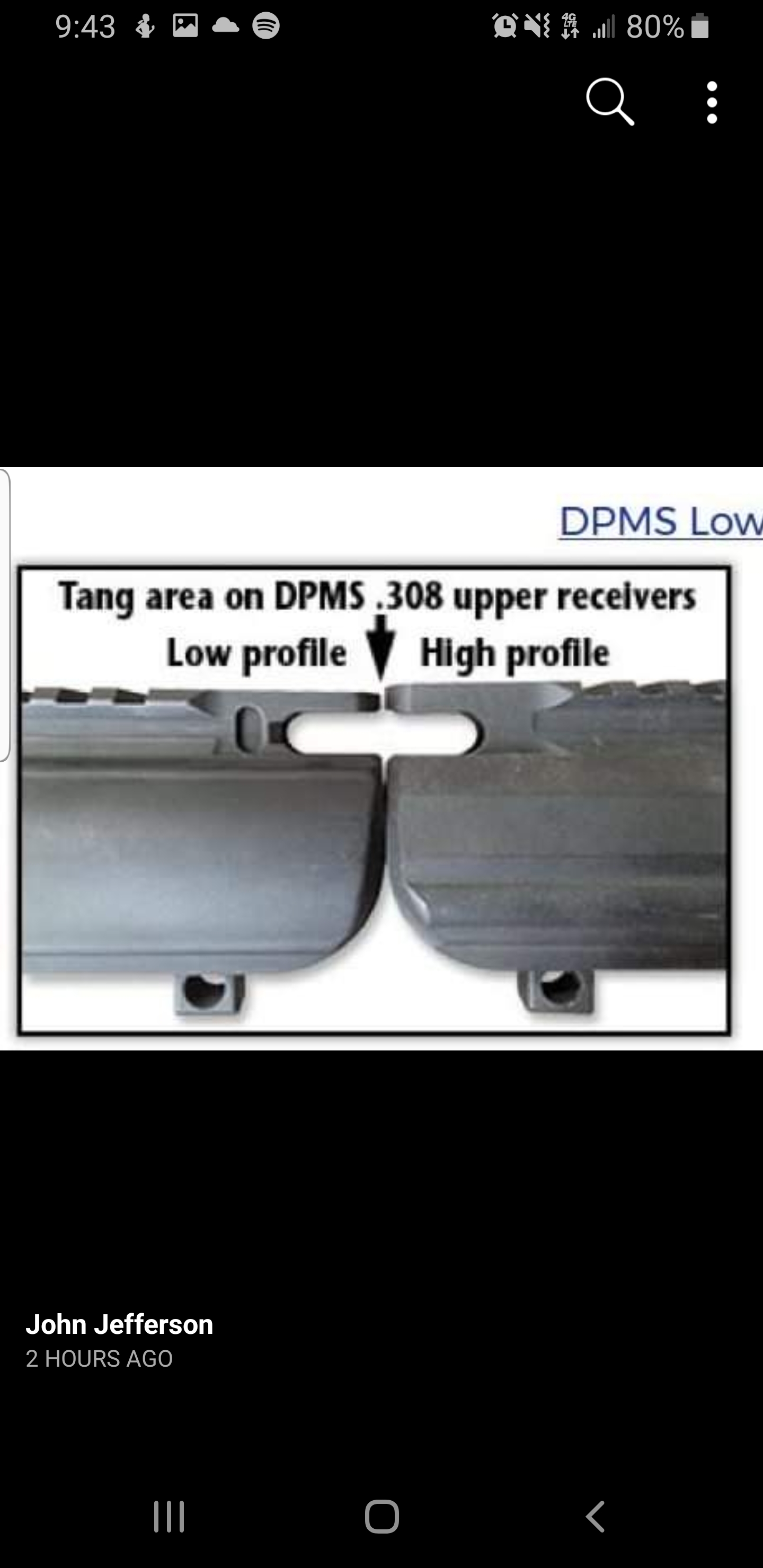

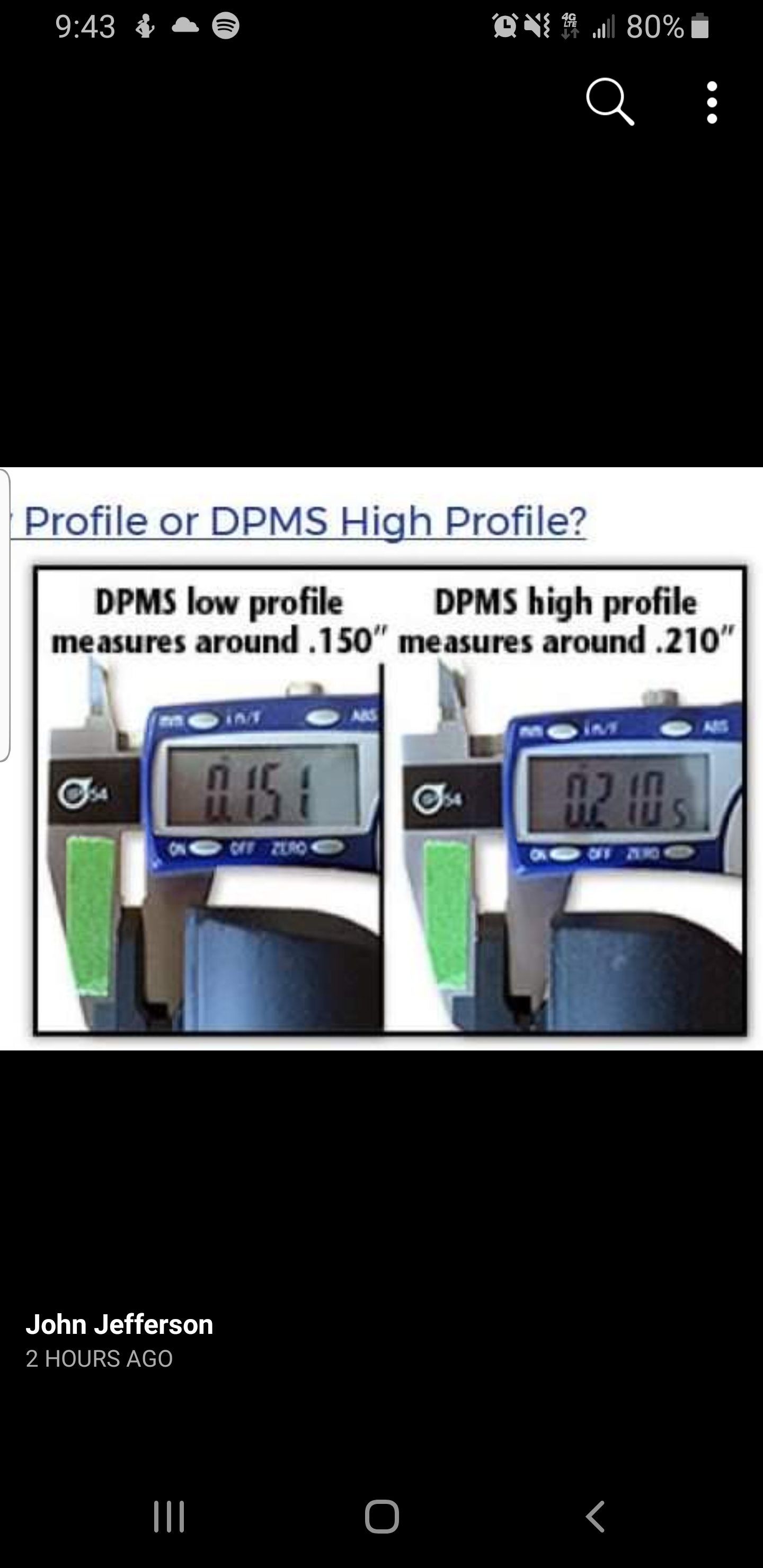

Available in either DPMS high or low profile. ( not sure which upper receiver you have? click HERE and HERE
to figure out which one you have)
Every handguard comes with a 4140 pre-heat treated steel barrel nut that has been black nitride coated
not phosphate coated. All mounting hardware is included with full mounting instructions.
A two-inch-long barrel nut ensures rigid mounting for rock-solid accessory mounting. ( this system
will not work with piston-driven rifles)
American made from American sourced 6061 T6 extruded aluminum.
Available in hard coat black anodize or 4 popular Cerakote colors. All Cerakoted parts are certified
Cerakote colors applied by a Cerakote certified applicator.
Hard coat anodized in accordance with MIL-A-8625 Type III class II
100% warranty against any and all manufacturers defects. If we missed something we will replace it at
no cost to you.
Handguard Installation Instructions
